Tube Fittings

Reducer

Model No. GV-26-R

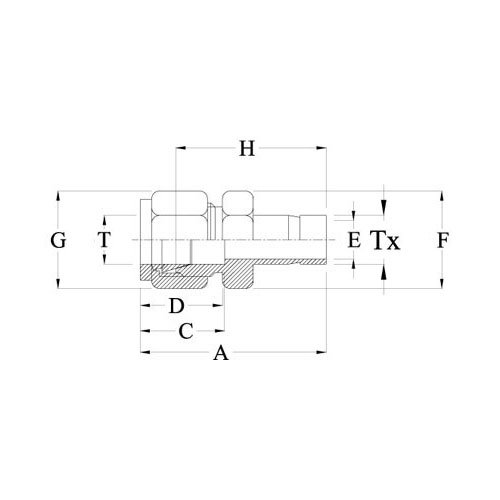

GV-26-R, Reducer - Tube Fittings

INCH OD Tubes

Model No. T Tube OD Tx Tube OD A C D E min. F A/F G A/F H
GV-26-R-2-2 1/8 1/8 33.5 15.3 12.7 2 11 11 26.9
GV-26-R-2-4 1/8 1/4 36.1 15.3 12.7 2.3 11 11 29.5
GV-26-R-2-6 1/8 3/8 37.6 15.3 12.7 2.3 11 11 31
GV-26-R-2-8 1/8 1/2 44.2 15.3 12.7 2.3 14 11 37.6
GV-26-R-4-2 1/4 1/8 36.8 17.8 15.3 2 12.7 14 29.5
GV-26-R-4-4 1/4 1/4 39.1 17.8 15.3 4.8 12.7 14 31.8
GV-26-R-4-6 1/4 3/8 40.6 17.8 15.3 4.8 12.7 14 33.3
GV-26-R-4-8 1/4 1/2 46.2 17.8 15.3 4.8 14 14 38.9
GV-26-R-4-12 1/4 3/4 47.8 17.8 15.3 4.8 20.5 14 40.4
GV-26-R-6-4 3/8 1/4 41.4 19.3 16.8 4.8 16 17 34
GV-26-R-6-6 3/8 3/8 43.2 19.3 16.8 7 16 17 35.8
GV-26-R-6-8 3/8 1/2 48.5 19.3 16.8 7 16 17 41.1
GV-26-R-6-12 3/8 3/4 50.3 19.3 16.8 7 16 17 42.9
GV-26-R-8-4 1/2 1/4 45 21.8 22.9 4.8 20.5 22 34.8
GV-26-R-8-6 1/2 3/8 46.7 21.8 22.9 7 20.5 22 36.6
GV-26-R-8-8 1/2 1/2 52.3 21.8 22.9 10 20.5 22 42.2
GV-26-R-8-12 1/2 3/4 53.8 21.8 22.9 10 22 22 43.7
GV-26-R-8-16 1/2 1 60.2 21.8 22.9 10 27 22 50
GV-26-R-12-8 3/4 1/2 54.6 21.8 24.4 10 27 28 44.5
GV-26-R-12-16 3/4 1 62.5 21.8 24.4 16 27 28 52.3

METRIC OD Tubes

Model No. T Tube OD Tx Tube OD A C D E min. F A/F G A/F H
GV-26-R-3m-3.2 3 3.2 33.5 15.3 12.7 2 11 11 26.9
GV-26-R-3m-6.35 3 6.35 36.1 15.3 12.7 2.2 12.7 11 29.5
GV-26-R-6m-3.2 6 3.2 36.9 17.8 15.3 2.2 12.7 14 29.5
GV-26-R-6m-6.35 6 6.35 39.9 17.8 15.3 4.8 12.7 14 32.5
GV-26-R-6m-9.52 6 9.52 40.7 17.8 15.3 4.8 12.7 14 33.3
GV-26-R-6m-12.7 6 12.7 46.3 17.8 15.3 4.8 14 14 38.9
GV-26-R-8m-9.52 8 9.52 42 19.3 16.8 6.4 15 16 34.5
GV-26-R-8m-12.7 8 12.7 47.6 19.3 16.8 6.4 15 16 40.1
GV-26-R-10m-9.52 10 9.52 44.2 19.3 16.8 6.9 18 17 36.6
GV-26-R-10m-12.7 10 12.7 49.8 19.3 16.8 7.9 18 17 42.2
GV-26-R-12m-12.7 12 12.7 52.3 21.8 22.9 9.4 20.5 22 42.2
GV-26-R-12m-19.05 12 19.05 53.8 21.8 22.9 9.5 22 22 43.7
GV-26-R-18m-19.05 18 19.05 56.1 21.8 24.4 15.1 27 28 46
GV-26-R-18m-25.4 18 25.4 62.4 21.8 24.4 15.1 27 28 52.3
GV-26-R-25m-25.4 25 25.4 69.4 26.5 31.3 20.2 36 38 57.2

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
