Model No. GV-147-CV-MXM-6K
FEATURES
Maximum Working Pressure:
6000 psi (414 bar) at 100°F (38°C)
Working Temperature :
-10°F (-23°C) to 392°F (200°C)
SS304/SS316 Stainless Steel
Cracking Pressure :
1psi (.06 bar) to 25psi (1.7 bar)
Viton O-rings
Sizes: 1/8”~1” pipe thread

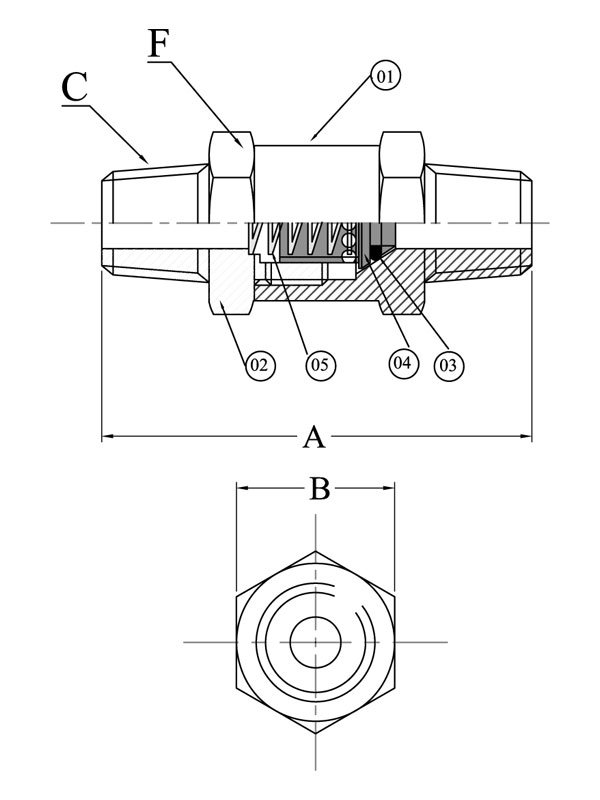

| Model No. | A | B (A/F) | C | F (A/F) |
| GV-147-CV-2 | 62 | 19 | 1/8"NPT | 19 |
| GV-147-CV-4 | 62 | 19 | 1/4"NPT | 19 |
| GV-147-CV-6 | 62 | 22 | 3/8"NPT | 22 |
| GV-147-CV-8 | 76 | 28.5 | 1/2"NPT | 28.5 |
| GV-147-CV-12 | 81 | 32 | 3/4"NPT | 32 |
| GV-147-CV-16 | 93 | 41 | 1"NPT | 41 |
| Sr. No. | Description | Material | Qty |
| 1 | Body | SS316 | 1 |
| 2 | Side Adaptor | SS316 | 1 |
| 3 | O Ring | VITON | 1 |
| 4 | Piston | SS316 | 1 |
| 5 | Spring | SS | 1 |
Note: All dimensions are subject to change without notice All dimensions are in mm unless specified
