Tube Fittings

Reducing Union Tee

Model No. GV-20-RUT

INCH OD Tubes

Model No. T Tube OD Tx Tube OD A Ax Ay C Cx D Dx E min. F A/F G A/F Gx A/F H Hx Hy
GV-20-RUT-6/6/4 3/8 1/4 61 30.5 29 19.3 17.8 16.8 15.3 4.8 16 17 14 46.2 23.1 21.6
GV-20-RUT-8/8/4 1/2 1/4 72.2 36 31.8 21.8 17.8 22.9 15.3 4.8 20.5 22 14 51.8 25.9 24.4
GV-20-RUT-8/8/6 1/2 3/8 72.2 36 33.3 21.8 19.3 22.9 16.8 7.1 20.5 22 17 51.8 25.9 25.9
GV-20-RUT-12/12/6 3/4 3/8 79.8 39.9 37 21.8 19.3 24.4 16.8 7.1 27 28.5 17 59.4 29.7 29.7
GV-20-RUT-12/12/8 3/4 1/2 79.8 39.9 39.9 21.8 21.8 24.4 22.9 10.4 27 28.5 22 59.4 29.7 29.7
GV-20-RUT-16/16/6 1 3/8 98 49 41.9 26.4 19.3 31.2 16.8 7.1 36 38 17 73.6 36.8 34.5
GV-20-RUT-16/16/8 1 1/2 98 49 44.7 26.4 22.9 31.2 21.8 10.4 36 38 22 73.6 36.8 34.5
GV-20-RUT-16/16/12 1 3/4 98 49 44.7 26.4 24.4 31.2 24.4 15.8 36 38 28.5 73.6 36.8 34.5
GV-20-RUT-20/20/16 1.1/4 1 135.6 67.8 55.1 38.9 26.4 41.2 31.2 22.3 46 50 38 91.4 45.7 42.9
GV-20-RUT-24/24/16 1.1/2 1 157.5 78.7 60 44.7 26.4 50 31.2 22.3 55 57 38 103.2 51.6 47.8

INCH OD Tubes

Model No. T Tube OD Tx Tube OD A Ax Ay C Cx D Dx E min. F A/F G A/F Gx A/F H Hx Hy
GV-20-RUT-6/4/6 3/8 1/4 59.4 30.5 29 19.3 17.8 16.8 15.3 4.8 16 17 14 44.7 23.1 21.6
GV-20-RUT-8/4/8 1/2 1/4 67.7 36 31.7 21.8 17.8 22.9 15.3 4.8 20.5 22 14 50.2 25.9 24.3
GV-20-RUT-8/6/8 1/2 3/8 69.3 36 33.3 21.8 19.3 22.9 16.8 7.1 20.5 22 17 51.8 25.9 25.9
GV-20-RUT-12/6/12 3/4 3/8 77 39.9 37.1 21.8 19.3 24.4 16.8 7.1 27 28.5 17 59.4 29.7 29.7
GV-20-RUT-12/8/12 3/4 1/2 79.8 39.9 39.9 21.8 21.8 24.4 22.9 10.4 27 28.5 22 59.4 29.7 29.7
GV-20-RUT-16/6/16 1 3/8 98.9 49 41.9 26.4 19.3 31.2 16.8 7.1 36 38 17 71.3 36.8 34.5
GV-20-RUT-16/8/16 1 1/2 93.7 49 44.7 26.4 21.8 31.2 21.8 10.4 36 38 22 71.3 36.8 34.5
GV-20-RUT-16/12/16 1 3/4 93.7 49 44.7 26.4 21.8 31.2 24.4 15.8 36 38 28.5 71.3 36.8 34.5
GV-20-RUT-20/16/20 1.1/4 1 119.6 67.8 53 38.9 26.4 41.2 31.2 18.2 46 50 38 85.3 45.7 40.8
GV-20-RUT-24/20/24 1.1/2 1 150.9 78.7 72.9 45.2 38.9 50 41.3 27.6 55 57 38 101.6 50.8 50.8



INCH OD Tubes

Model No. T Tube OD Tx Tube OD A Ax Ay C Cx D Dx E min. F A/F G A/F Gx A/F H Hx Hy
GV-20-RUT-6/4/4 3/8 1/4 59.6 30.6 29 19.3 17.8 16.8 15.3 4.8 16 17 14 44.8 23.2 21.6
GV-20-RUT-8/4/4 1/2 1/4 67.7 36 31.7 21.8 17.8 22.9 15.3 4.8 20.5 22 14 50.2 25.9 24.3
GV-20-RUT-8/6/6 1/2 3/8 69.3 36 33.2 21.8 19.3 22.9 16.8 7.1 20.5 22 17 51.8 25.9 25.9
GV-20-RUT-12/6/6 3/4 3/8 77 38.9 37 21.8 19.3 24.4 16.8 7.1 27 28.5 17 59.4 29.7 29.7
GV-20-RUT-12/8/8 3/4 1/2 79.8 39.9 39.9 21.8 21.8 24.4 22.9 10.4 27 28.5 22 59.4 29.7 29.7
GV-20-RUT-16/6/6 1 3/8 99.9 39.9 41.9 26.4 19.3 31.2 16.8 7.1 36 38 17 71.3 36.8 34.5
GV-20-RUT-16/8/8 1 1/2 93.7 49 44.7 26.4 22.9 31.2 21.8 10.4 36 38 22 71.3 36.8 34.5
GV-20-RUT-16/12/12 1 3/4 93.7 49 44.7 26.4 24.4 31.2 24.4 15.8 36 38 28.5 71.3 36.8 34.5
GV-20-RUT-20/16/16 1.1/4 1 122.9 67.8 55.1 38.9 26.4 41.2 31.2 22.3 46 50 38 88.6 45.7 42.9
GV-20-RUT-24/16/16 1.1/2 1 138.7 78.7 60 44.7 26.4 50 31.2 22.3 50 57 38 99.4 51.6 47.8

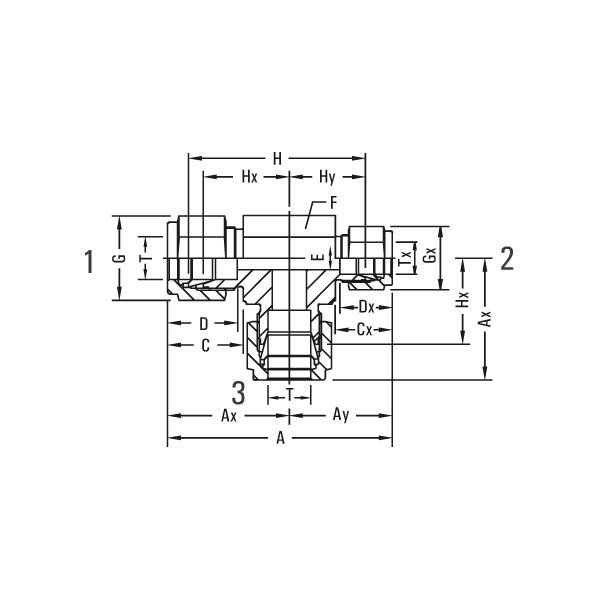

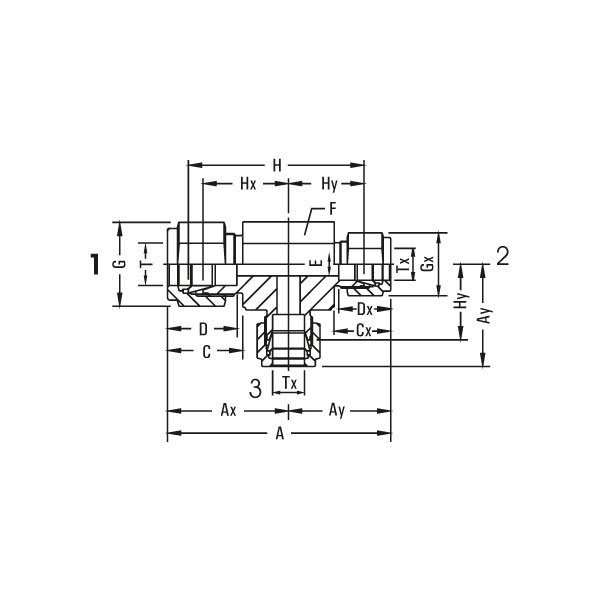

NOTE: 1. The order of the sizes is as per the designation (1-2-3) in figure shown above

NOTE:The combinations shown above are representative of various possibilities. Other combinations not shown are also available. Please consult us.

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
